potato french fries production line frozen chips making machine price frozen french fries machine

FOB Reference Price:Get Latest Price
$20,000.00 - $198,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Capacity (Min. Order: 1 Sets)
Material Thickness (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Food Shop
After Warranty Service:
Video technical support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TUNE
Voltage:
220V/380V/400V/415V/450V
Power(W):
240KW
Weight:
1500Kg
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Application:
Chips/Fries
Name:
Frozen French Fries Processing Line
Material:
304 Stainless Steel
Dry material:
content≥20%
Sugar:
content≤0.4%
Length:
≥68mm
Dimensions:
5500*2000*2000mm
Heating method:
electric
Supply Ability
Supply Ability:
50 Set/Sets per Month Frozen French Fries Processing Line
Packaging & Delivery
Packaging Details
Stretch Film+Wooden box ; potato french fries production line frozen chips making machine price frozen french fries machine
Port
Qingdao/Shanghai/Ningbo/Shenzhen sea port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Video Description
Recommend Products
Product Description

 Frozen French Fries Production Line Machine

This fully automatic potato fries production line is mainly composed of potato washing & peeling machine, cutting machine, blanching machine, dehydrator, frying machine, deoiling machine, flavour machine and packing machine. Easy operation, high output and good production effect.French fries seem very smooth and uniform. Besides,the thickness could be adjusted freely. Apart from making potato fries, you could also make Frozen French Fries(equipped with IQF Tunnel Freezer).


The frozen French fries production line process includes: cleaning. Peel. Slices, cleaning, impurities removal, blanching,air-drying, Pre-frying, air-drying, Quick-frozen, packaging.Then store in cold storage.Capacity also can do 100kg, 200kg , 300kg, 500kg,1000kg output One hour.


The Plantain Chips production line process includes: Slices, Frying ,Sugar dipping, second frying,air drying seasoning,packaging.Capacity also can do 50kg, 100kg , 200kg, 300kg output One hour.

The potato chips production line process includes: cleaning. Peel. Slices, cleaning, blanching, air-drying, Frying, air-drying,seasoning, packaging.Capacity also can do 50kg, 100kg , 200kg, 300kg output One hour.

Potato Requirement

Oval in shape Dry material content≥20% Sugar content≤0.4%;

Length ≥68mm Color outside is yellow Color inside is white
Less and small bud hole

Equipment Description

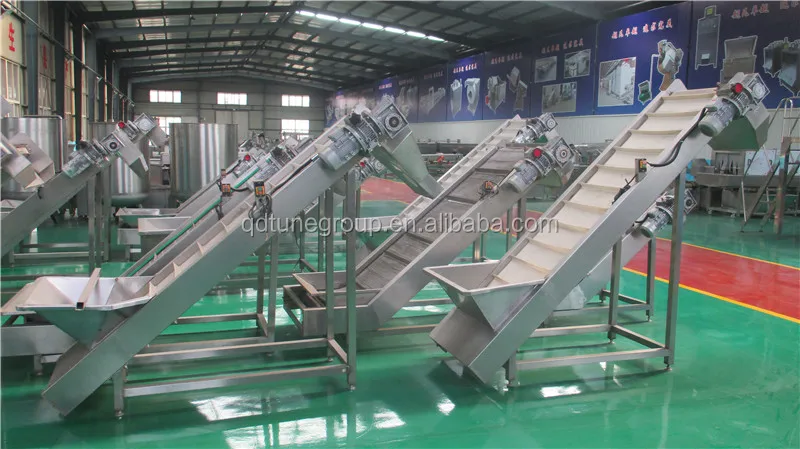

1. Hoister with water spray

It is used to preclean potato,soften the potato skin, then hoist potatoes into washing and peeling machine.

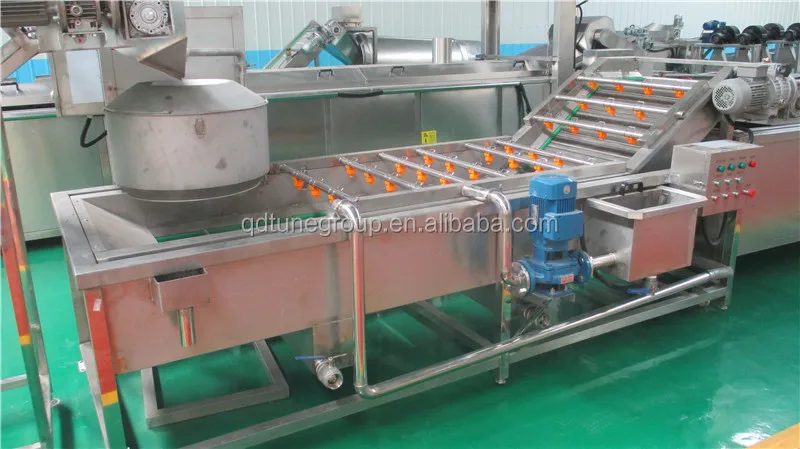

2. Washing and peeling machine
This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely.

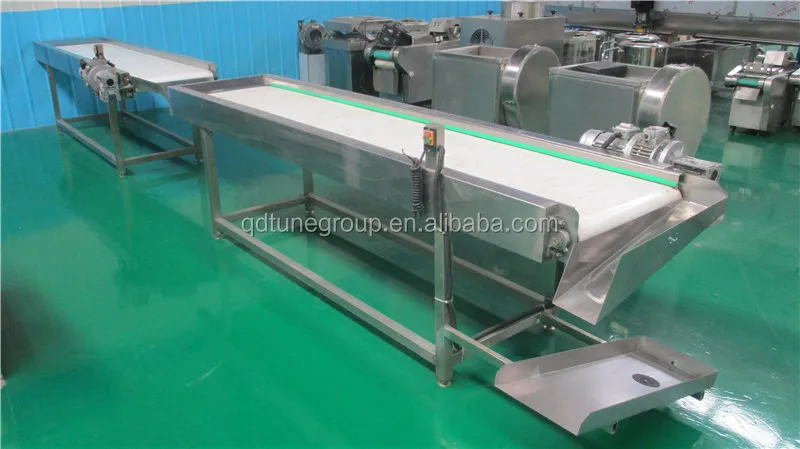

3. Inspecting table
This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.
4. Water bucket elevator
This machine is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.
5. Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important.

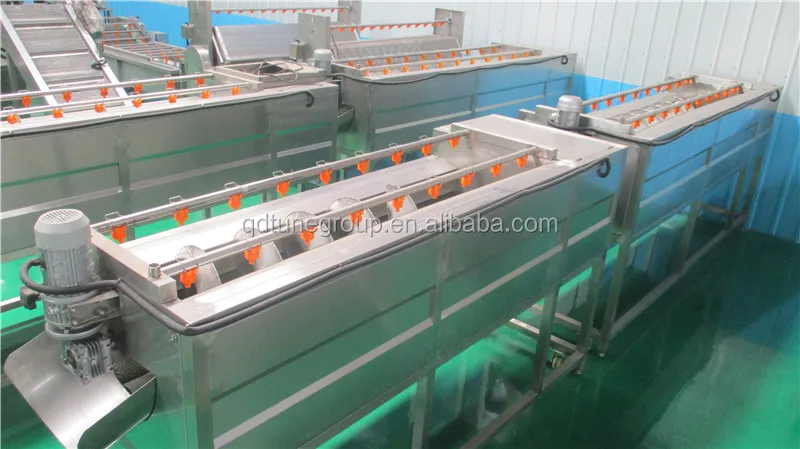

6. Rinsing machine
This machine used to washing potato starch and protect potato from oxidation, keep its original color.
7. Blanching machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the reducing sugar, also after blanching,it will get inner soft taste of french fries.

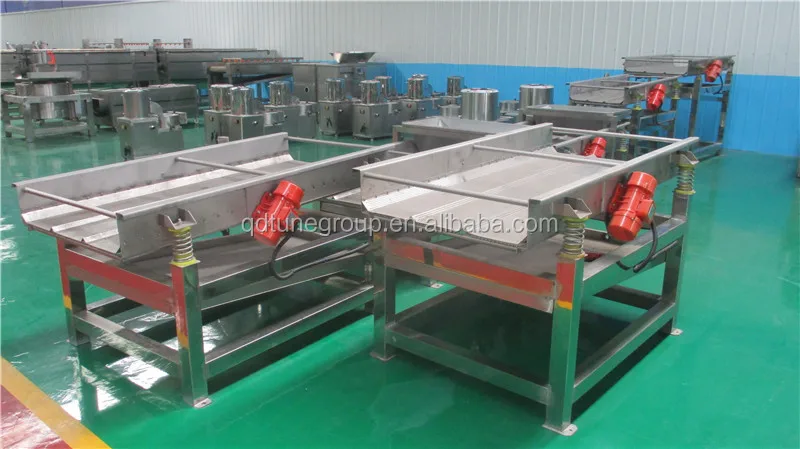

8. Vibration de-water machine
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.

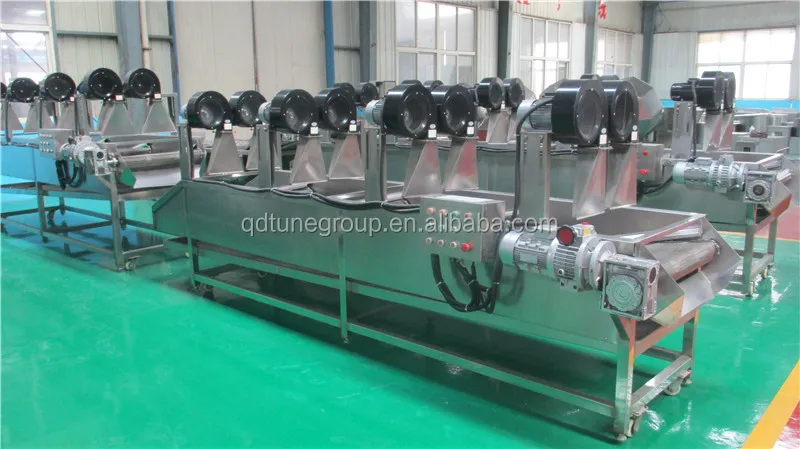

9. Air-dryer machine:Remove water, drying fries

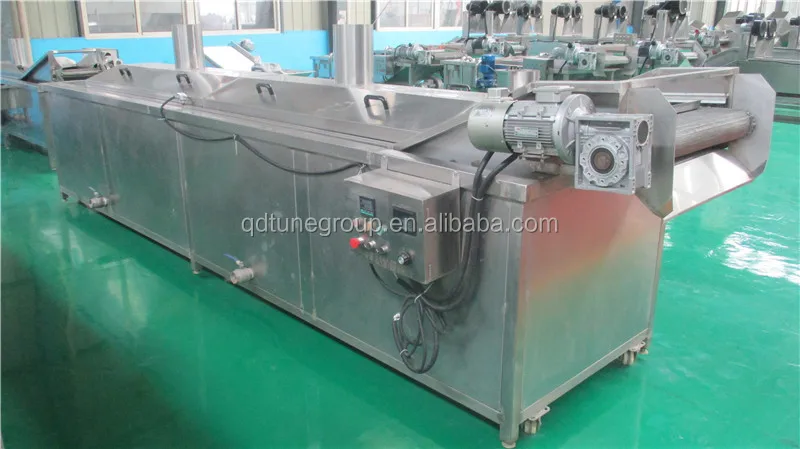

10. Continuous frying machine:This machine is used to unified fry sticks in short time.
11. Vibrating de-oil machine:This machine is used to de-oil with the vibrating.
12. Cooling line:Use fan to blow off the water on stick surface, then deliver sticks into the freezer.
13. Conveyor :Used between cooling line and quick-freezing machine.

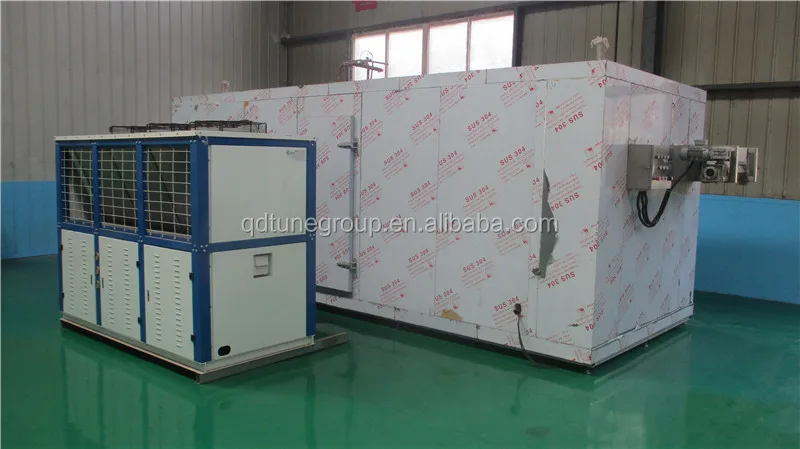

14. Fluidized-type freezer
It is used to quick freezing the french fries in short time, fries center temperature at -18 ℃, Can the maximum keep the original flavor and product quality.
15. Conveyor:Used between quick-freezing machine and packing machine.

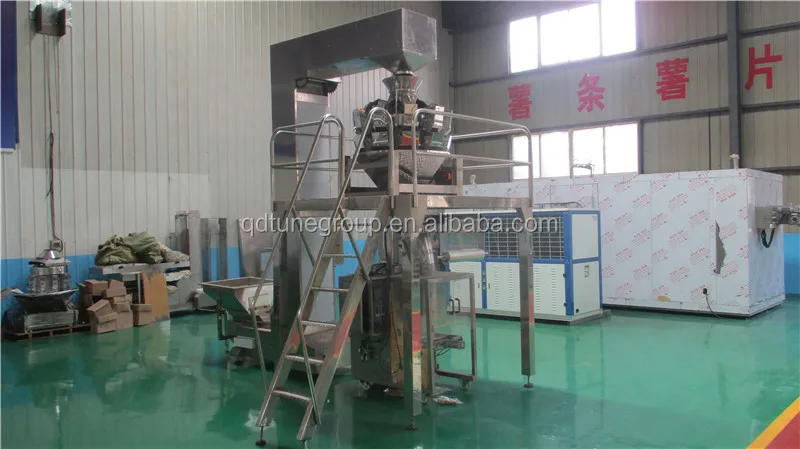

16. Automatic weighing and packing machine
It is used to pack the frozen french fries automatically, including bucket Elevator.
1:Hoister
2400x700x1600mm
10:Air-dryer machine
6000x1100x1600mm
2:Washing&peeling machine
3400x900x1500mm
11:Hoister
1800x800x1300mm
3:Inspecting table
4000x800x900mm
12:Continuous frying line machine
6000x1200x2400m
4:Potato cutter
950x800x950mm
13:Oil filter
400x400x800mm
5:Water bucket elevator
2400*800*1500mm
14:Vibration de-oil machine
1800x1000x1200mm
6:Miscellaneous machine
3000x1000x1300mm
15:Drying line
6000x1100x1600mm
7:Rinsing line machine
4000x1200x1400mm
16:Hoister
3000x800x2000mm
8:Blanching line machine
6000x1200x1400mm
17:IQF Tunnel Freezer
8000x3900x2900mm
9:Vibration de-water machine
1800x1000x1200mm
18:Automatic weighing and packing machine
3000x3000x2600mm
Device Configuration
Detailed Images
Related Products

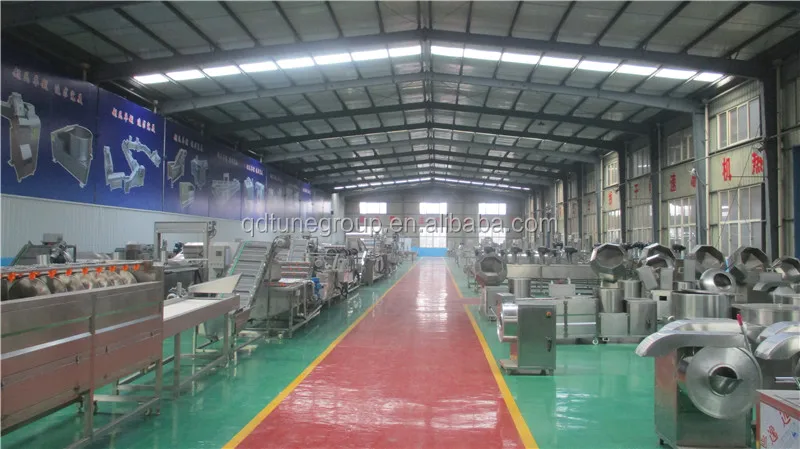

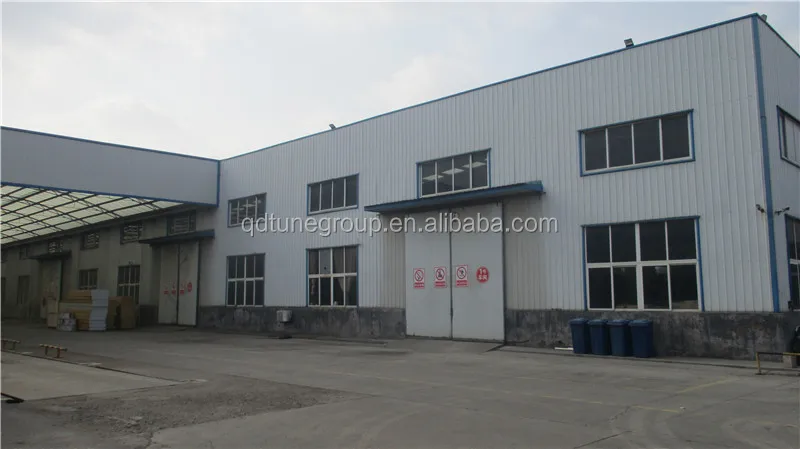

Our Factory
